Genuine Mansfield 2206 Pilot Fill Valve Free Shipping

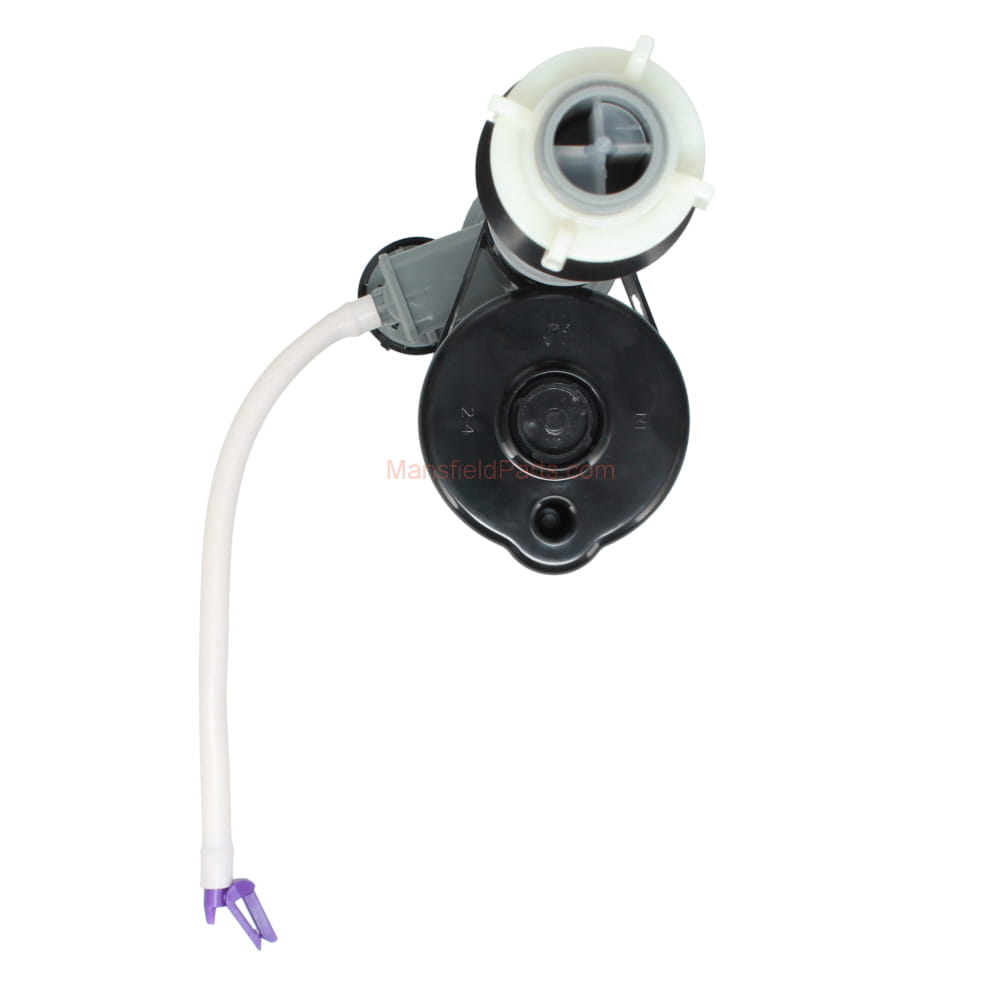

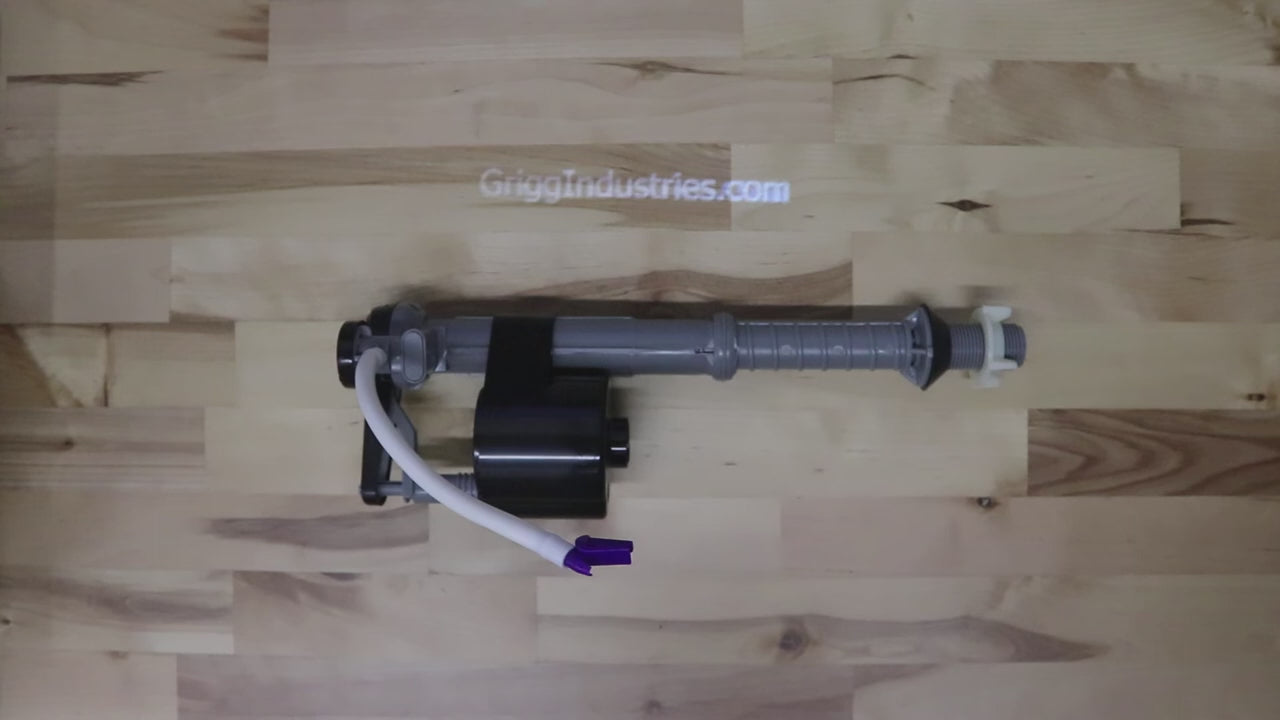

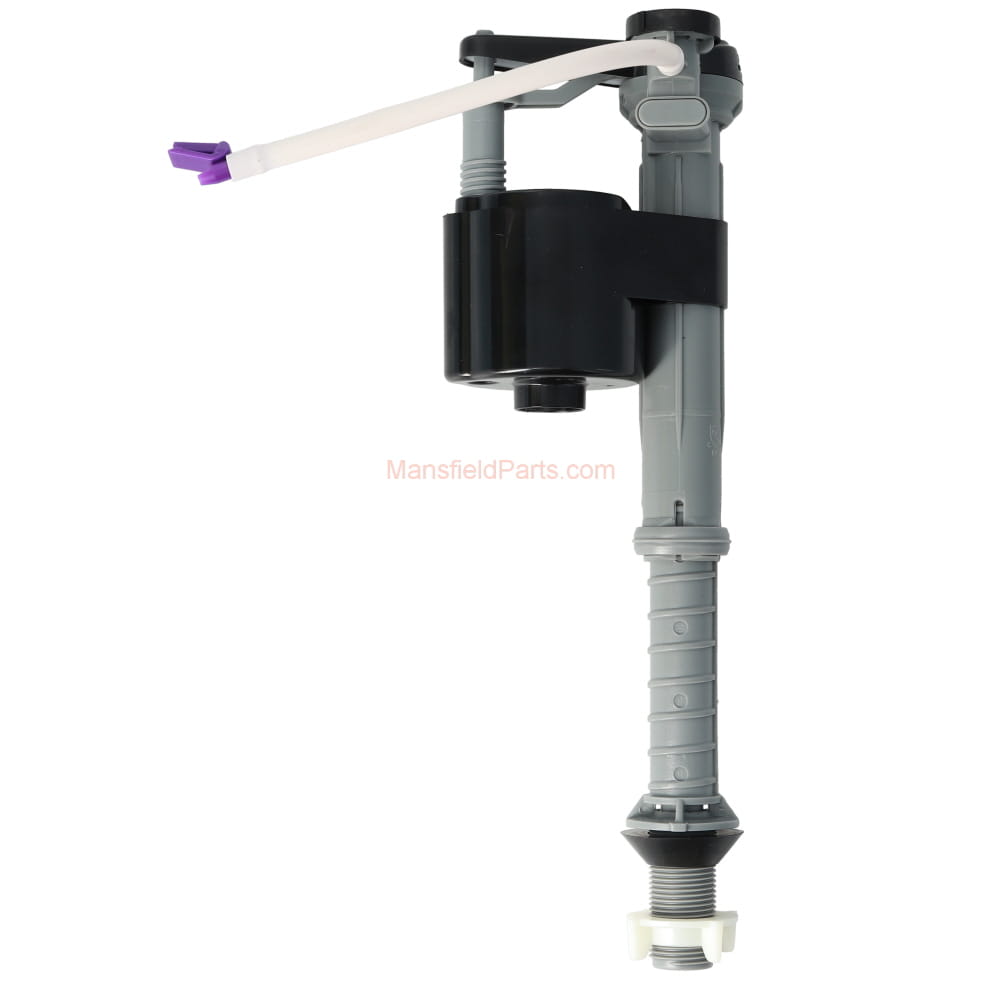

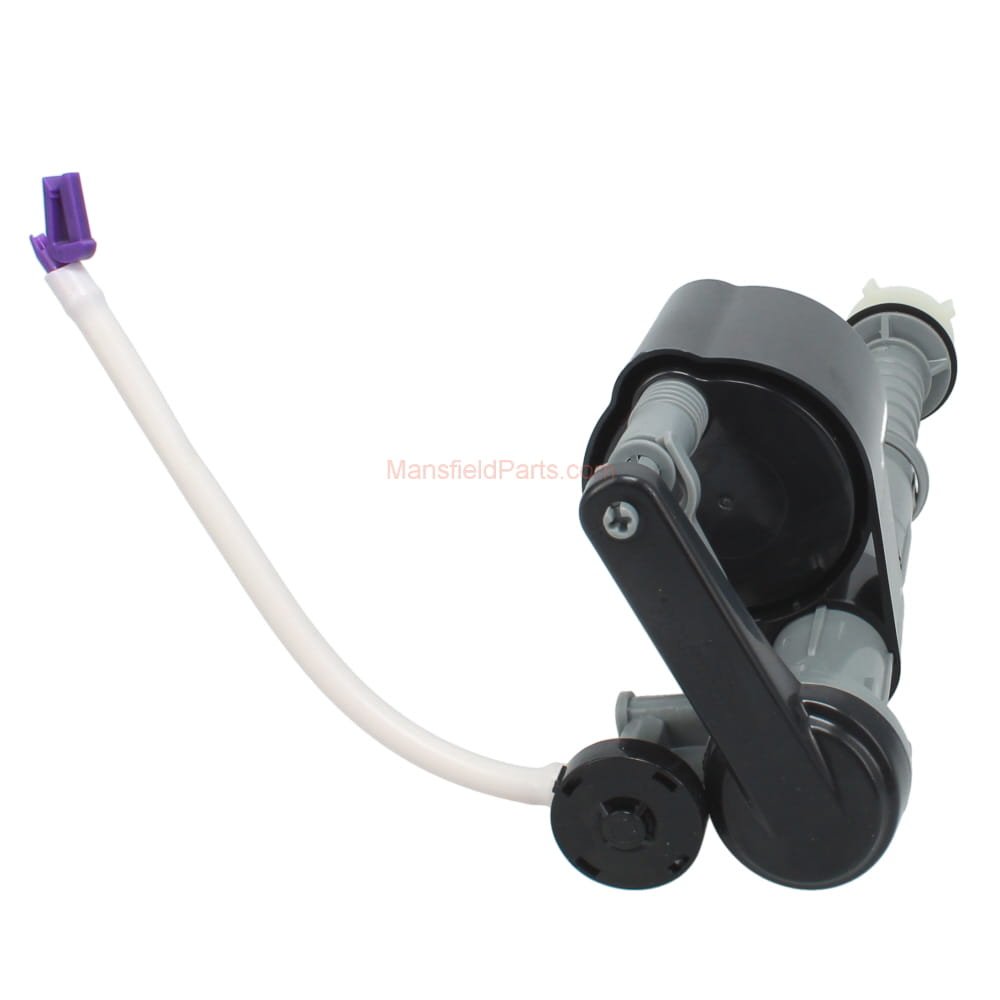

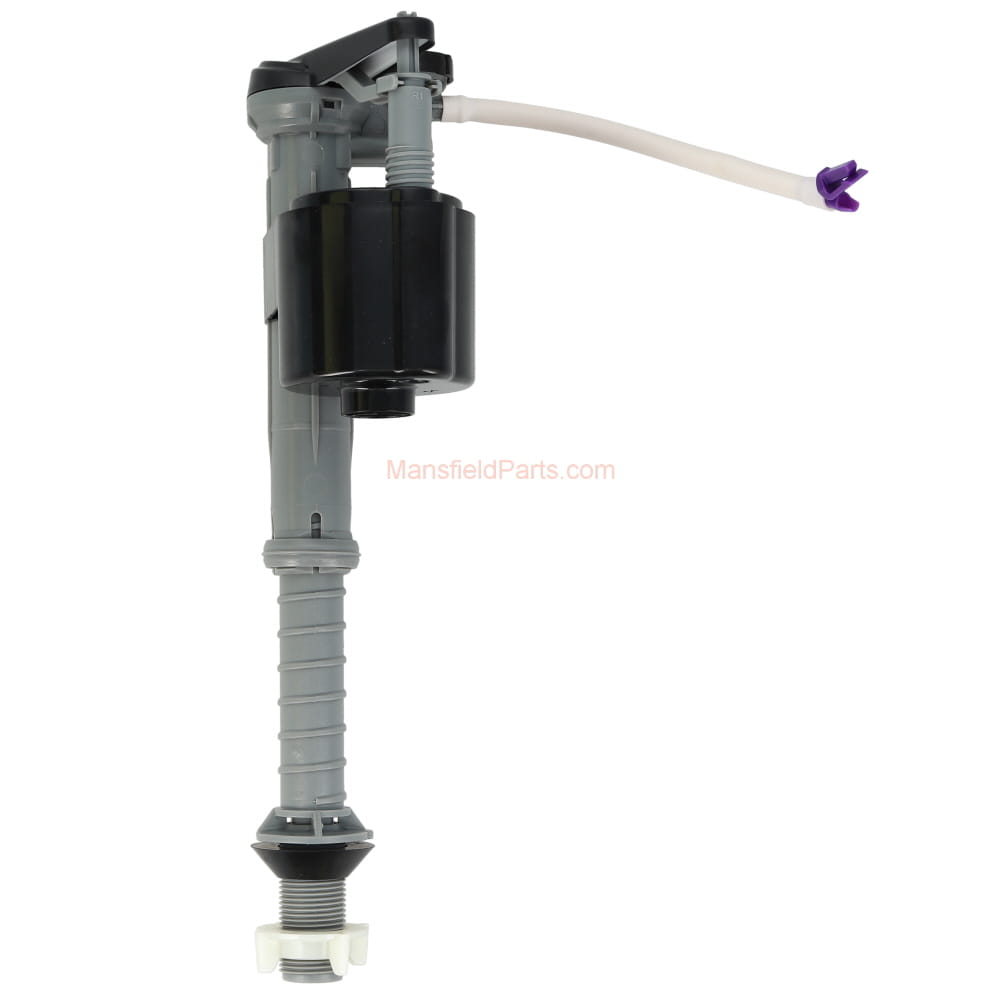

The Mansfield Genuine 2206 Fill valve fits Mansfield Tank models 172, 173, and 174 as well as many others. This part can also be found under the part number 1303916. This valve comes with the tank seal, attaching nut, and replenish tube. The 2206 fill valve should come pre adjusted to your tank. If you have a leak, or groaning sound coming from the top of the valve. It is most likely due to the two rubber gaskets located in the cap of the valve. Both the leak, and groaning issue can be fixed with the Mansfield 630-2206 seal kit. To install this valve the first step is to shut the water supply off, and disconnect the supply line from the bottom of the existing valve. You will then loosen the nut securing the valve to the tank, and lift the complete fill valve assembly out of the tank. Before installing the new valve you will need to flush the stop out. You can do this by placing the end of the supply line into an empty bucket, and turning the water supply on. You will then let the water flow through the line for a few seconds, and then shut the water off. It is recommended to repeat this process at least 2 to 3 times. To insure no debris flows directly into the new fill valve, which can damage the inner components of the fill valve. The next, and final step of the installation is to secure the new fill valve with the nut supplied, and then connect the supply line, and turn the water on.
